Standard Pop

Learn how to add Standard Pop, implement its features and customize icons and other design elements.

Key features

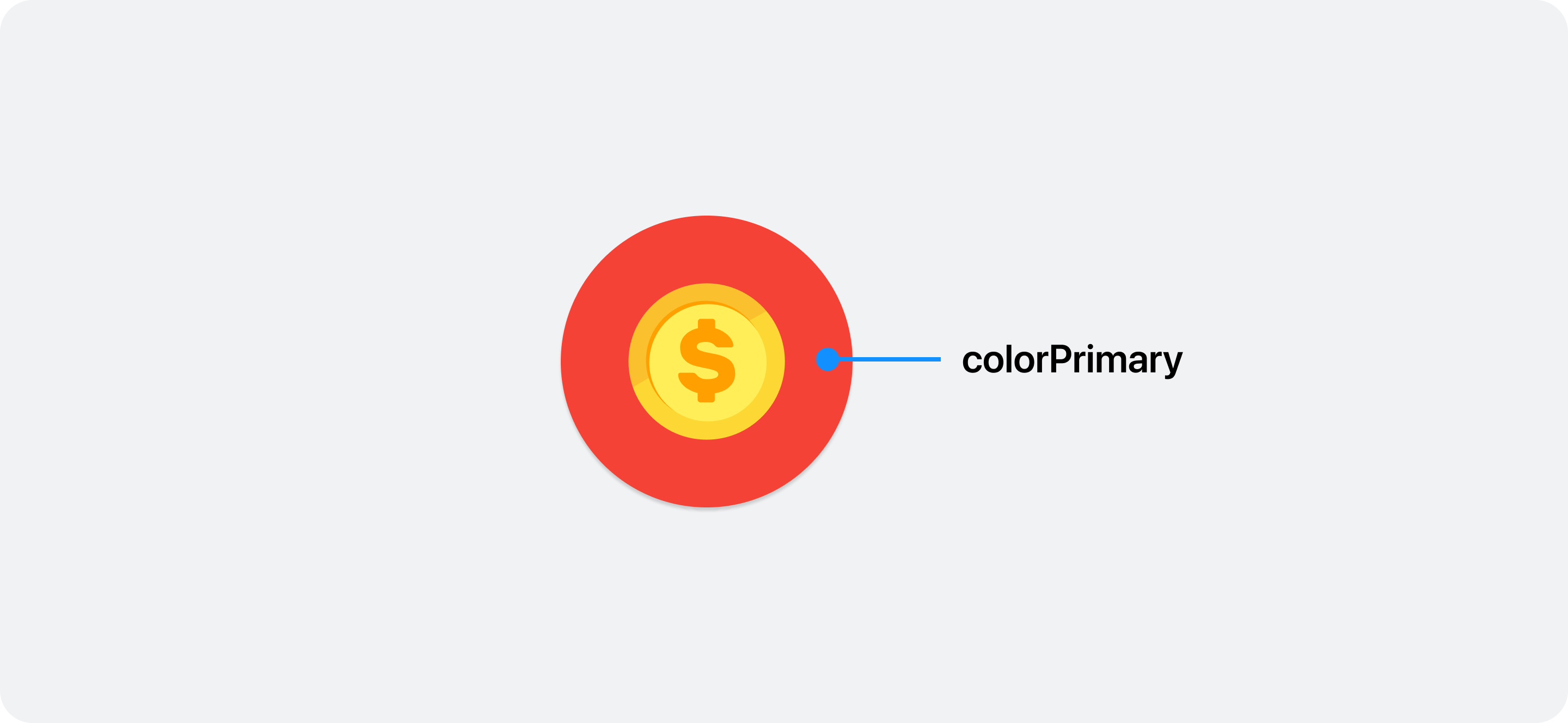

Standard Pop is a circular button outside your app that directs users to BuzzBenefit. It appears whenever users unlock their screen and can be dragged to another position. It uses transparency to accommodate Android 12's restrictions on touch events through overlays and keep the app working reliably.

Integration

Follow these steps to add Standard Pop.

Step 1. Prepare

Complete BuzzBenefit integration.
Add the Pop dependency to your Gradle file.

dependencies {

    def buzzvilBomVersion = 5.36.+


    api platform("com.buzzvil:buzzvil-bom:$buzzvilBomVersion")

    implementation "com.buzzvil:buzzad-benefit-pop"

}

Step 2. Add Pop BuzzBenefit

BuzzBenefit opened through Pop can reuse your existing integration without a separate ID. Follow these steps to add it.

Create a new FeedConfig and set the Unit ID to use for the Pop BuzzBenefit ID (YOUR_POP_UNIT_ID).
Set optInFeatureList on the FeedConfig you created.

The FeedConfig settings also apply to Pop BuzzBenefit. See BenefitHub and UI settings — BenefitHub for details about FeedConfig.

import com.buzzvil.buzzad.benefit.BuzzAdBenefitConfig
import com.buzzvil.buzzad.benefit.presentation.feed.FeedConfig
import com.buzzvil.buzzad.benefit.presentation.feed.config.OptInFeature
import com.buzzvil.sdk.BuzzvilSdk

val feedConfig = FeedConfig.Builder("YOUR_POP_UNIT_ID")
    .optInFeatureList(mutableListOf(OptInFeature.Pop))
    .build()

val buzzAdBenefitConfig = BuzzAdBenefitConfig.Builder(context)
    .setDefaultFeedConfig(feedConfig)
    .build()
BuzzvilSdk.initialize(this@App, buzzAdBenefitConfig)

Step 3. Enable Pop

Follow these steps to enable Pop for users.

Call BuzzAdPop.activate() to enable Pop.

Android 6.0 Marshmallow and later require permission to draw over other apps. Prompt for this permission as needed when calling BuzzAdPop.activate().

Display the Pop button with BuzzAdPop.getInstance().show().

import com.buzzvil.buzzad.benefit.pop.BuzzAdPop

BuzzAdPop.getInstance().activate(object: BuzzAdPop.PopActivateListener {
    override fun onActivated() {
        // 정상적으로 Pop이 활성화 되었을 때 호출됩니다.
        // 유저 화면에 바로 Pop을 표시합니다.
        BuzzAdPop.getInstance().show()
    }

    override fun onActivationFailed(error: Throwable?) {
        // Pop 활성화에 실패하였을 때 호출됩니다.
    }
})

Disable Pop

Call buzzAdPop.deactivate(Context) to disable Pop. The foreground service notification also disappears.

The following example disables Pop.

import com.buzzvil.buzzad.benefit.pop.BuzzAdPop

BuzzAdPop.getInstance().deactivate(context)

Additional features

Learn how to implement and configure the Pop button and Pop BenefitHub. The main features are shown below.

Configure `PopConfig`

Use PopConfig to manage Pop BenefitHub with a separate Unit ID or configure features beyond those set through FeedConfig.

The following example adds PopConfig to BuzzAdBenefitConfig.

import com.buzzvil.buzzad.benefit.BuzzAdBenefitConfig
import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.buzzad.benefit.presentation.feed.FeedConfig
import com.buzzvil.sdk.BuzzvilSdk

val popFeedConfig = FeedConfig.Builder(Constant.YOUR_POP_ID)
    .build()
val popConfig = PopConfig.Builder(popFeedConfig)
    .build()

// BuzzBenefit 설정
val buzzAdBenefitConfig = BuzzAdBenefitConfig.Builder(Constant.YOUR_APP_ID)
    .setPopConfig(popConfig)
    .build()

// Buzzvil SDK 초기화
BuzzvilSdk.initialize(
    application = this@App,
    buzzAdBenefitConfig = buzzAdBenefitConfig
)

Change the Pop button display duration

Set how long the Pop button remains visible before disappearing. The default is 5 seconds.

import com.buzzvil.buzzad.benefit.pop.PopConfig

val popConfig = PopConfig.Builder(popFeedConfig)
    .idleTimeInMillis(5000) // Pop 표시 시간
    .build()

Change the Pop button position

Set where the button appears when users unlock their device. The default is SidePosition.Side.RIGHT, 0.6f, on the right side at 60% of the screen height measured from the top (SidePosition.Side.LEFT / SidePositionSide.RIGHT).

import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.buzzad.benefit.pop.popicon.SidePosition

val popConfig = PopConfig.Builder(popFeedConfig)
    .initialSidePosition(SidePosition(SidePosition.Side.RIGHT, 0.6f)) // Pop 표시 위치
    .build()

Set Pop button horizontal spacing

Set the space between Pop and its preview view on the left, and between Pop and the right screen edge. The defaults are 8dp between the button and message, and 0dp between the button and screen edge.

import com.buzzvil.buzzad.benefit.pop.PopConfig

val popConfig = PopConfig.Builder(popFeedConfig)
    .marginBetweenIconAndPreviewInDp(8.0f) // 팝 버튼과 메시지 사이 간격
    .marginBetweenIconAndScreenEdgeInDp(24.0f) // 팝 버튼과 화면 끝 사이 간격
    .build()

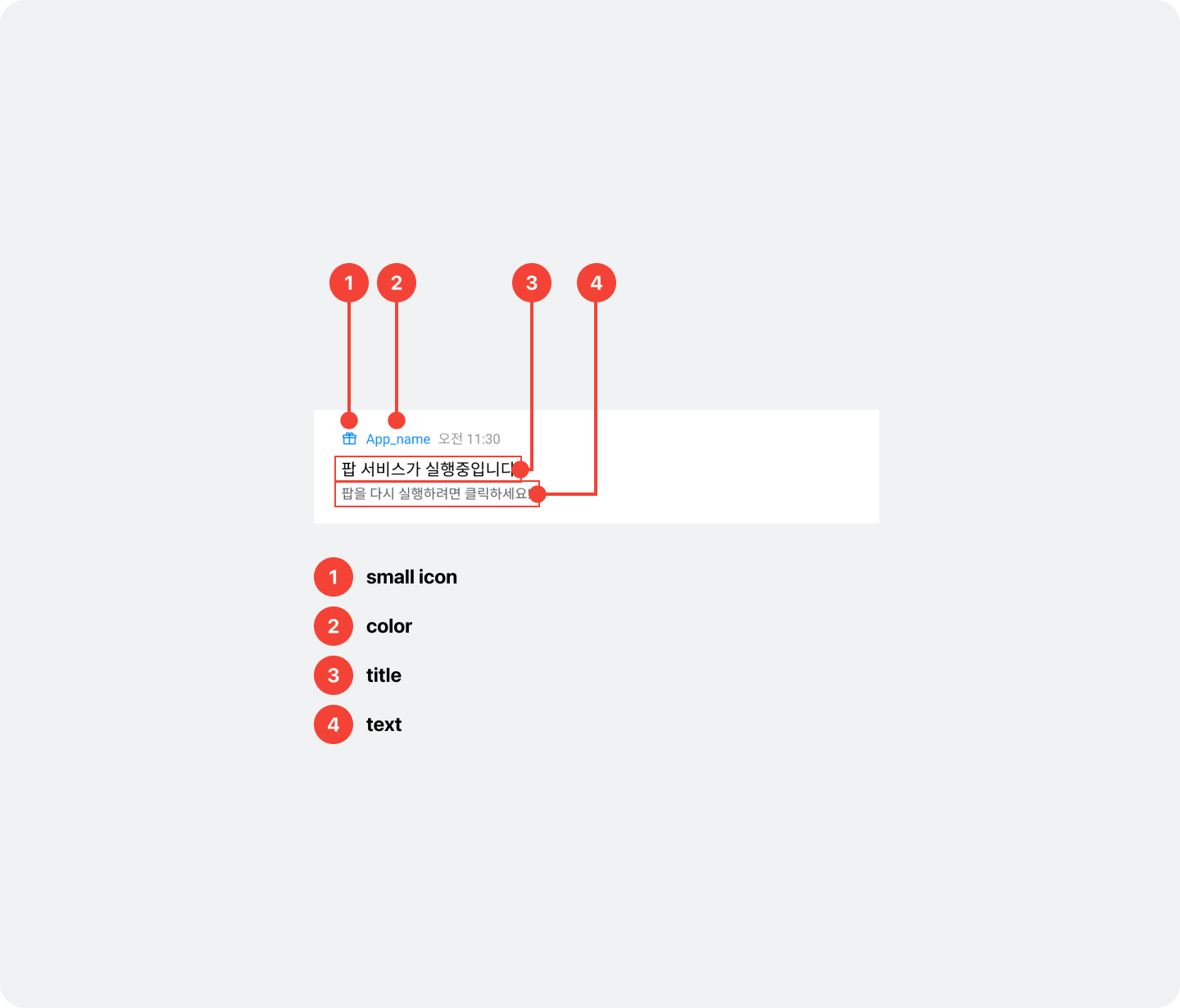

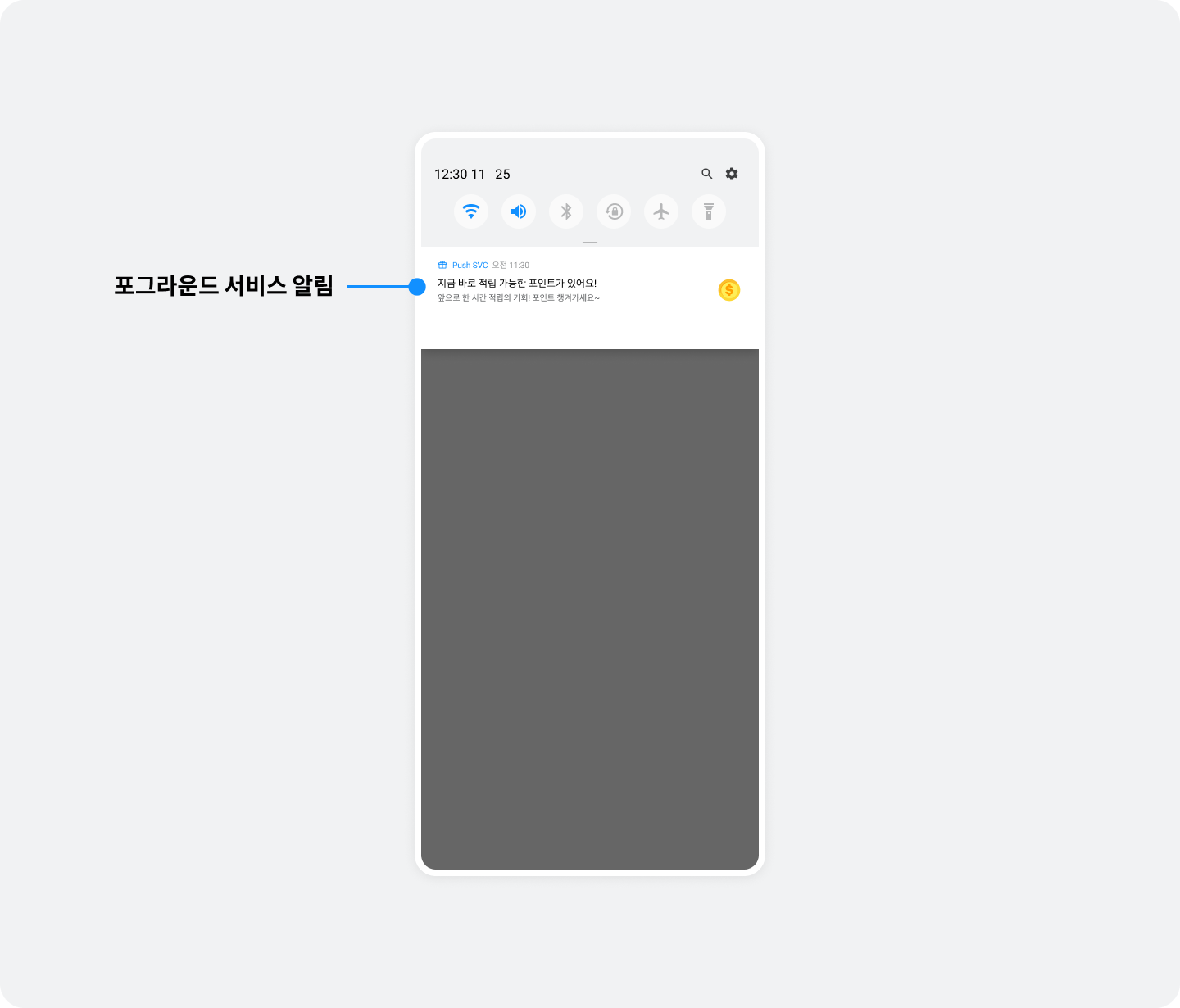

Implement a custom Pop foreground service notification

Use PopConfig to implement your own notification behavior and layout.

Enabling Pop starts its foreground service notification. Unless you customize it with PopConfig, the SDK's default notification appears in the device notification panel.

Follow these steps to implement a custom Pop foreground service notification.

Implement a subclass of PopControlService.

Create notificationChannel or register a View.

Use getPopPendingIntent(unitId, context) to obtain a PendingIntent that opens Pop.

The following example implements a subclass of PopControlService.

import android.annotation.TargetApi
import android.os.Build
import android.widget.RemoteViews
import androidx.core.app.NotificationCompat
import com.buzzvil.buzzad.benefit.pop.PopControlService
import com.buzzvil.buzzad.benefit.pop.PopNotificationConfig

class YourPopControlService: PopControlService() {
    companion object {
        const val POP_NOTIFICATION_ID = "1000"
    }

    override fun buildForegroundNotification(unitId: String, popNotificationConfig: PopNotificationConfig): Notification {
        // Pop을 표시하는 PendingIntent (원형 아이콘)
        val popPendingIntent = getPopPendingIntent(unitId, this)

        // 필요에 따라 notificationChannel을 등록합니다.
        val builder = if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {
            createNotificationChannelIfNeeded()
            NotificationCompat.Builder(this, POP_NOTIFICATION_ID)
        } else {
            NotificationCompat.Builder(this)
        }

        // Pop Service Notification에 사용할 View 를 등록합니다.
        val remoteView = RemoteViews(packageName, R.layout.notification_pop)
        builder.setSmallIcon(popNotificationConfig.smallIconResId)
            .setContent(remoteView)
            .setContentIntent(popPendingIntent)
            .setPriority(NotificationCompat.PRIORITY_LOW)
            .setShowWhen(false)
        builder.foregroundServiceBehavior = NotificationCompat.FOREGROUND_SERVICE_IMMEDIATE
        if (popNotificationConfig.color != null) {
            builder.color = popNotificationConfig.color!!
        }

        return builder.build()
    }

    @TargetApi(Build.VERSION_CODES.O)
    override fun createNotificationChannelIfNeeded() {
        val notificationManager = getSystemService(NOTIFICATION_SERVICE) as android.app.NotificationManager
        if (notificationManager.getNotificationChannel(POP_NOTIFICATION_ID) == null) {
            val channel = android.app.NotificationChannel(
                POP_NOTIFICATION_ID,
                NOTIFICATION_CHANNEL_NAME,
                android.app.NotificationManager.IMPORTANCE_LOW
            )
            notificationManager.createNotificationChannel(channel)
        }
    }
}

Set notificationId on the PopNotificationConfig object, as shown below.

import com.buzzvil.buzzad.benefit.BuzzAdBenefitConfig
import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.buzzad.benefit.pop.PopNotificationConfig
import com.buzzvil.buzzad.benefit.presentation.feed.FeedConfig

// PopNotificationConfig 설정
val popNotificationConfig = PopNotificationConfig.Builder(this@App)
    .notificationId(YourPopControlService.POP_NOTIFICATION_ID)
    .build()

// Pop을 Feed와 분리하여 따로 설정
val popFeedConfig = FeedConfig.Builder(Constant.YOUR_POP_ID)
    .build()
val popConfig = PopConfig.Builder(popFeedConfig)
    .popNotificationConfig(popNotificationConfig)
    .controlService(YourPopControlService::class.java)
    .build()

// BuzzBenefit 설정
val buzzAdBenefitConfig = BuzzAdBenefitConfig.Builder(Constant.YOUR_APP_ID)
    .setPopConfig(popConfig)
    .build()

```xml


<application>
    <service android:name=".YourControlService"
        android:foregroundServiceType="specialUse">
        <property android:name="android.app.PROPERTY_SPECIAL_USE_FGS_SUBTYPE"
            android:value="floating bubble for user to interact" />
    </service>
</application>
```

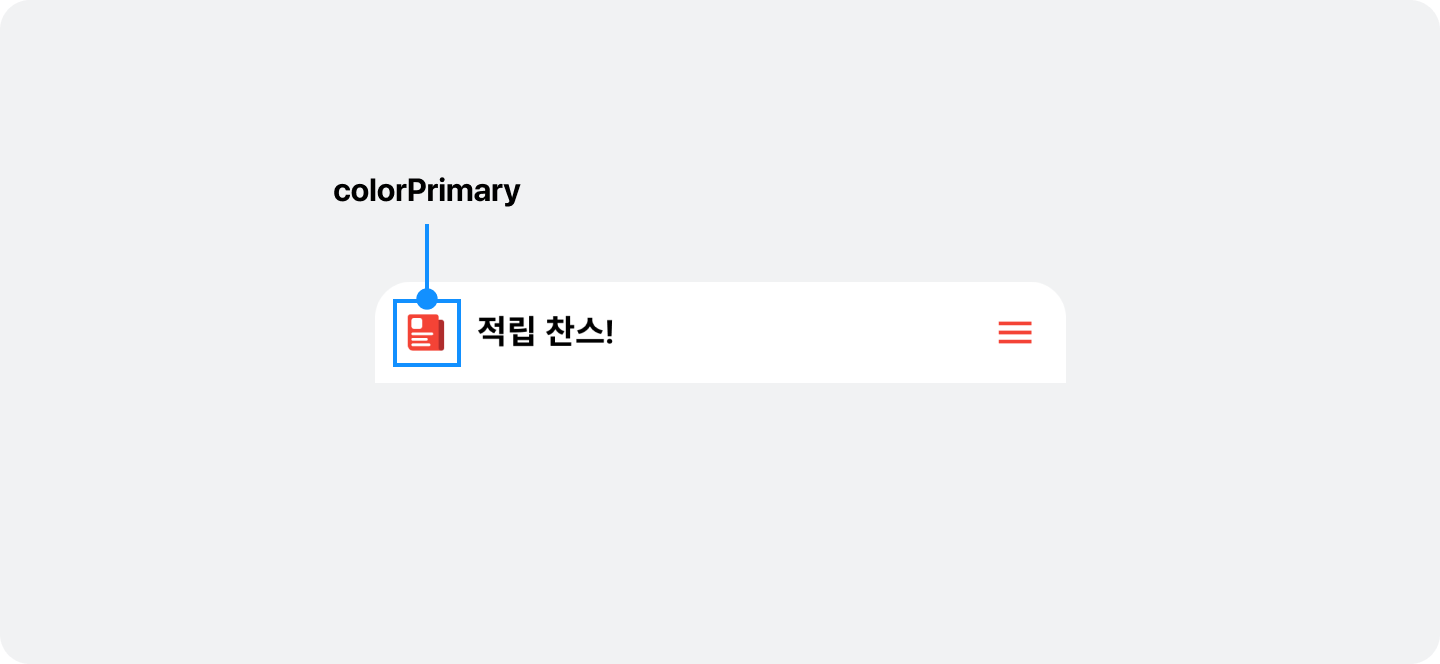

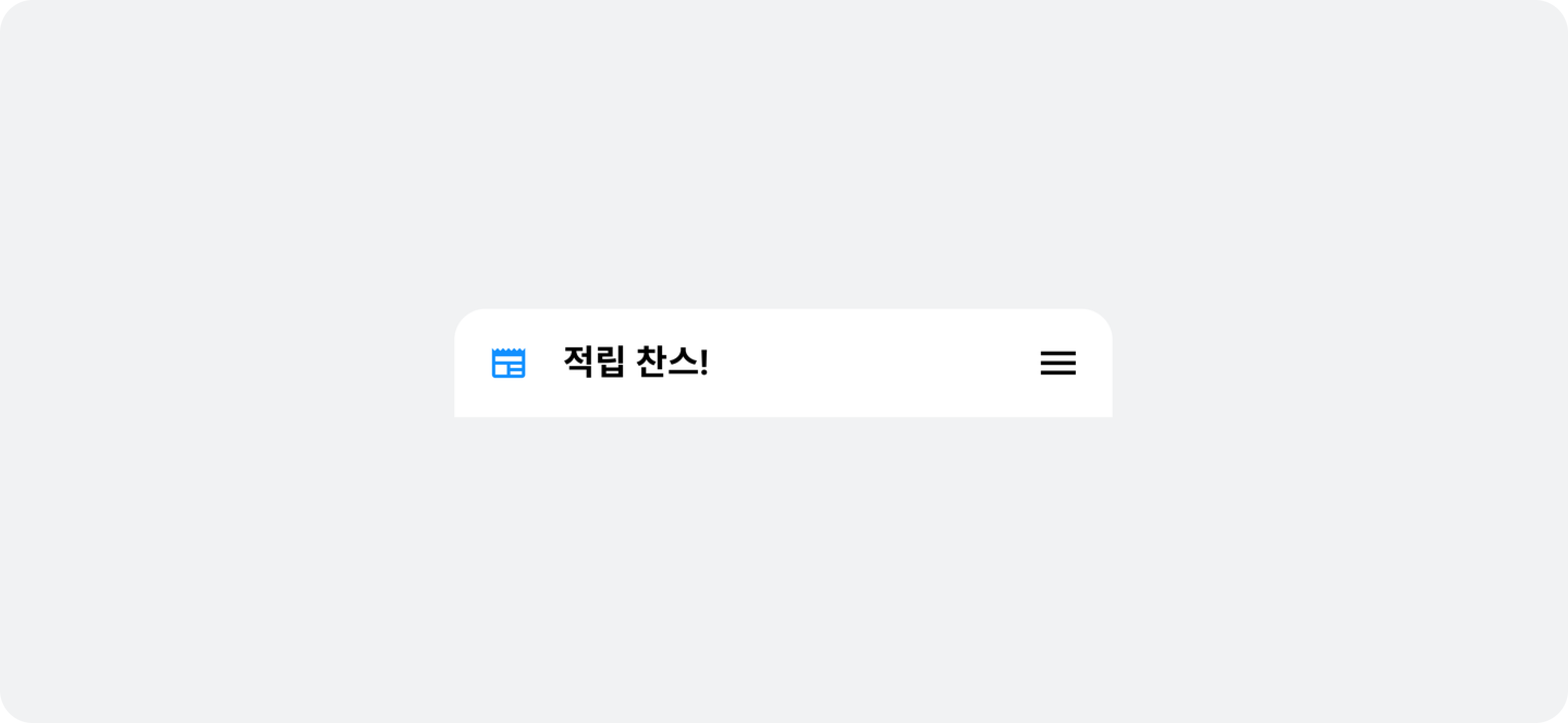

Implement a custom navigation bar

Customize the Pop BenefitHub navigation bar using either the SDK's default UI or your own custom view.

Use the SDK's default UI

Modify the SDK's default UI to customize the Pop BenefitHub navigation bar.

Implement a subclass of DefaultPopToolbarHolder and customize the layout using the default PopToolbar UI. Register your class in popToolbarHolderClass of PopConfig.

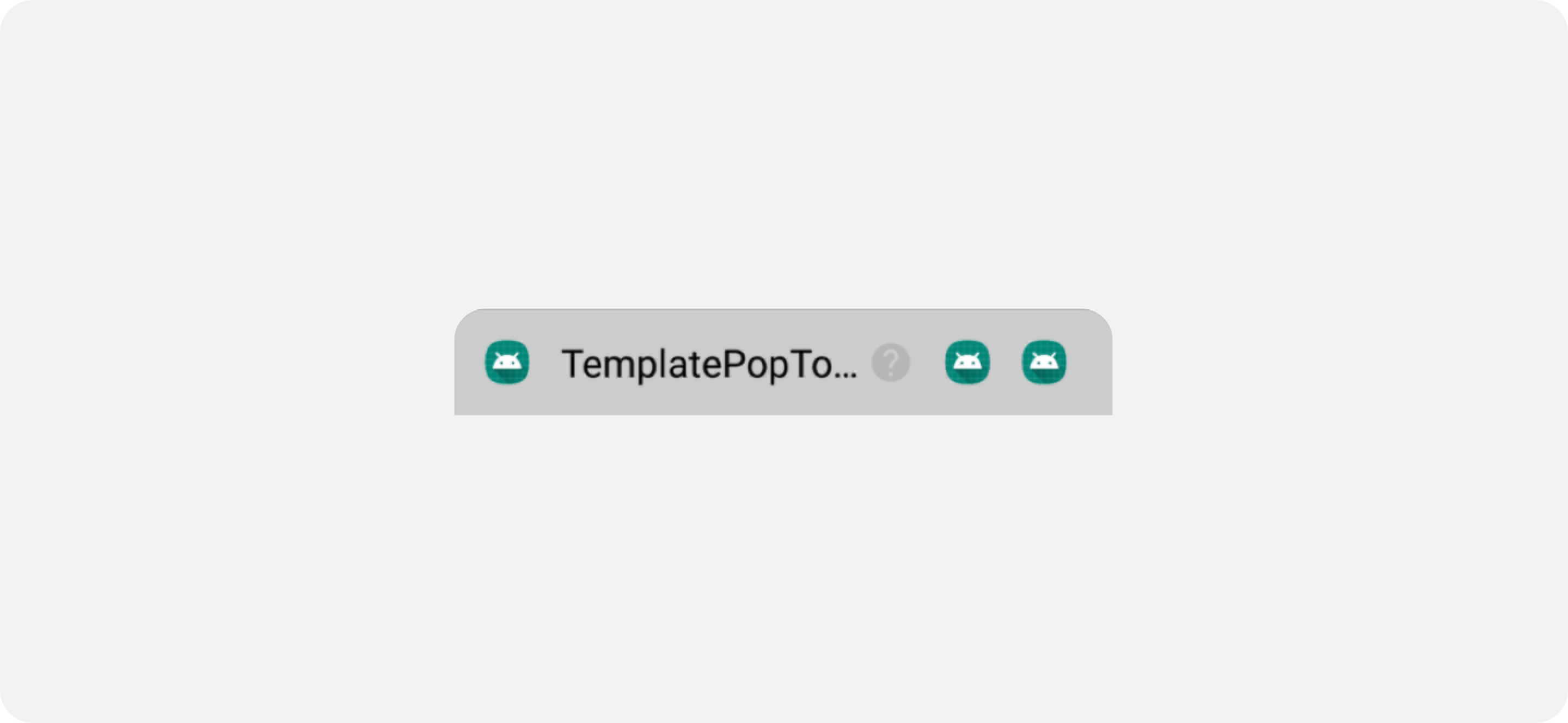

The following example implements a Pop BenefitHub navigation bar using the SDK's UI.

import com.buzzvil.buzzad.benefit.pop.toolbar.DefaultPopToolbarHolder
import com.buzzvil.buzzad.benefit.pop.toolbar.PopToolbar

class YourPopToolbarHolder : DefaultPopToolbarHolder() {
    override fun getView(activity: Activity, unitId: String): View {
        super.toolbar = PopToolbar(activity) // PopToolbar 에서 제공하는 기본 Template 사용
        toolbar.setTitle("TemplatePopToolbarHolder") // 내비게이션 바 타이틀 문구를 변경합니다.
        toolbar.setIconResource(R.mipmap.ic_launcher) // 내비게이션 바 좌측 아이콘을 변경합니다.
        toolbar.setBackgroundColor(Color.LTGRAY) // 내비게이션 바 배경색을 변경합니다.

        addSettingsMenuItemView(activity) // 메뉴 버튼 추가 (메뉴 안에 문의하기 버튼이 있습니다)
        addInquiryMenuItemView(activity) // 문의하기 버튼은 이 함수를 통해 간단하게 추가 가능합니다.
        addRightMenuItemView(activity) // custom 버튼 추가

        return toolbar
    }

    // custom 버튼 추가는 toolbar.buildPopMenuItemView 를 사용하여 PopMenuImageView 를 생성하고
    // toolbar.addRightMenuButton 를 사용하여 toolbar 에 추가합니다.
    private fun addRightMenuItemView(activity: Activity) {
        val menuItemView = super.toolbar.buildPopMenuItemView(activity, R.mipmap.ic_launcher)
        menuItemView.setOnClickListener {
            super@YourPopToolbarHolder.showInquiry(activity) // 문의하기 페이지로 연결합니다.
        }
        toolbar.addRightMenuButton(menuItemView)
    }
}

Set YourPopToolbarHolder on PopConfig.

import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.buzzad.benefit.presentation.feed.FeedConfig

val popFeedConfig = FeedConfig.Builder("YOUR_POP_UNIT_ID")
    .build()
PopConfig.Builder(popFeedConfig)
    .popToolbarHolderClass(YourPopToolbarHolder::class.java)
    .build()

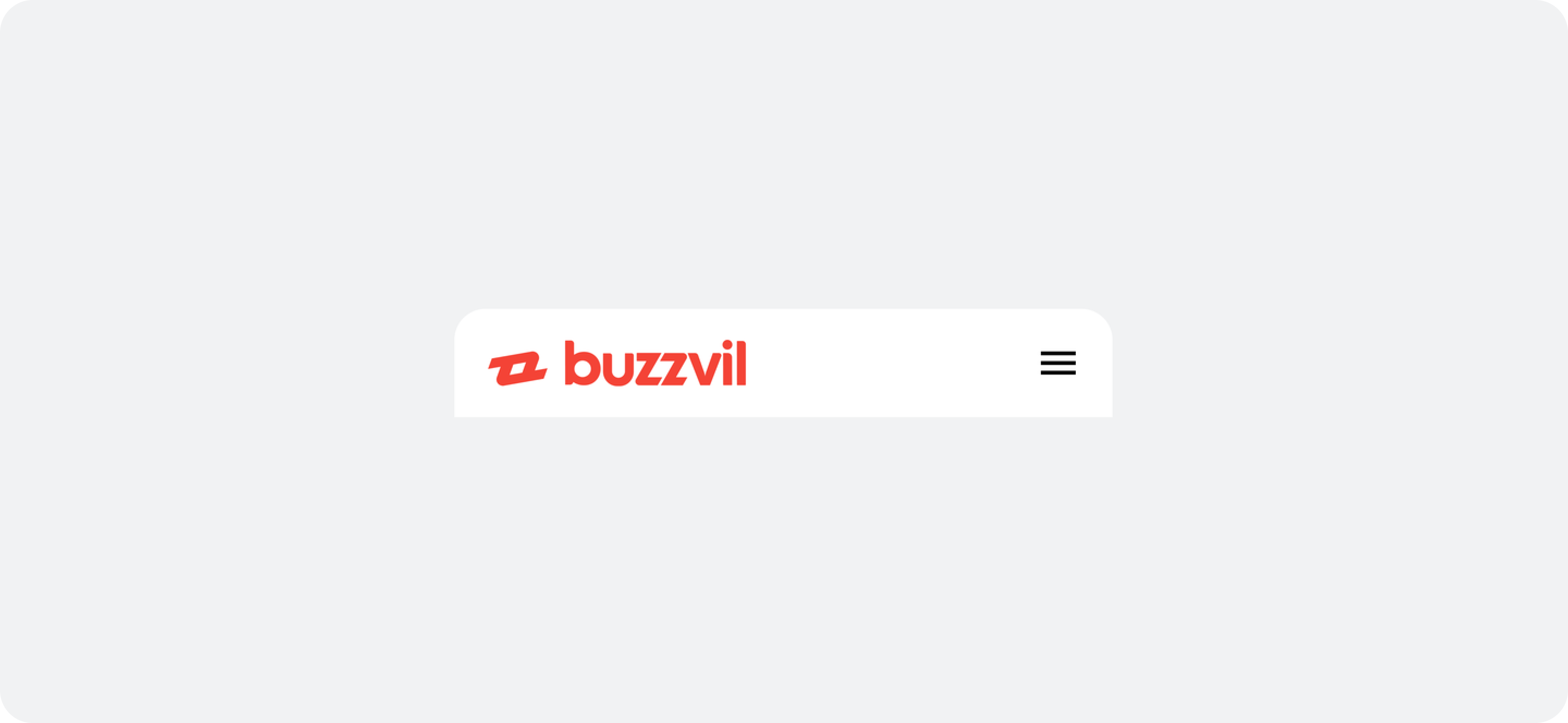

Use your own custom view

Implement a custom view instead of the SDK's UI to replace the Pop BenefitHub navigation bar.

The following example subclasses DefaultPopToolbarHolder to create a custom navigation bar view, then registers the class in PopConfig.

import android.app.Activity
import android.graphics.Color
import android.view.View
import com.buzzvil.buzzad.benefit.pop.toolbar.DefaultPopToolbarHolder
import com.buzzvil.buzzad.benefit.pop.toolbar.PopToolbar

class CustomPopToolbarHolder: DefaultPopToolbarHolder() {
    override fun getView(activity: Activity, unitId: String): View {
        super.toolbar = PopToolbar(activity) // PopToolbar에서 제공하는 기본 Template 사용
        toolbar.setTitle("Custom Title") // 내비게이션 바 타이틀 문구를 변경합니다.
        toolbar.setIconResource(R.mipmap.ic_launcher) // 내비게이션 바 좌측 아이콘을 변경합니다.
        toolbar.setBackgroundColor(Color.LTGRAY) // 내비게이션 바 배경색을 변경합니다.

        super.addSettingsMenuItemView(activity) // 메뉴 버튼 추가 (메뉴 안에 문의하기 버튼이 있습니다)
        super.addInquiryMenuItemView(activity) // 문의하기 버튼은 이 함수를 통해 간단하게 추가 가능합니다.
        addRightMenuItemView(activity) // custom 버튼 추가
        return toolbar
    }

    // custom 버튼 추가는 toolbar.buildPopMenuItemView 를 사용하여 PopMenuImageView 를 생성하고
    // toolbar.addRightMenuButton 를 사용하여 toolbar 에 추가합니다.
    private fun addRightMenuItemView(activity: Activity) {
        val menuItemView = toolbar.buildPopMenuItemView(activity, R.drawable.ic_launcher_foreground)
        menuItemView.setOnClickListener {
            super.showInquiry(activity) // 문의하기 페이지로 연결합니다.
        }

        toolbar.addRightMenuButton(menuItemView)
    }
}

import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.buzzad.benefit.presentation.feed.FeedConfig

val popFeedConfig = FeedConfig.Builder("YOUR_POP_UNIT_ID")
    .build()

PopConfig.Builder(popFeedConfig)
    .popToolbarHolderClass(CustomPopToolbarHolder::class.java)
    .build()

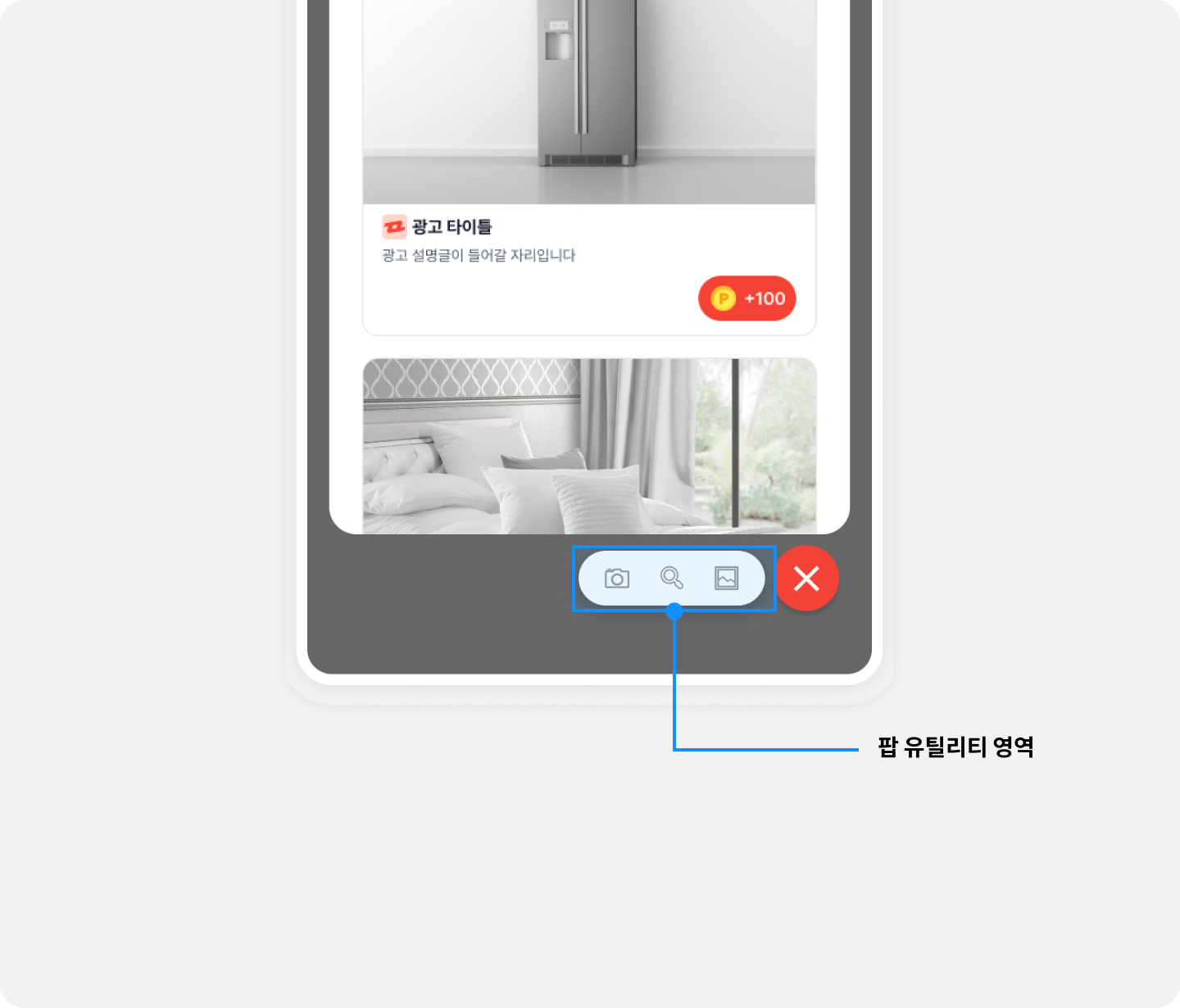

Customize the Pop utility area

Add features such as opening an app menu or navigating to another page in the utility area at the lower right of Pop.

The following example extends PopUtilityLayoutHandler, adds a custom view (your_pop_utility_view), then registers the class in FeedConfig.

import android.content.Context
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import com.buzzvil.buzzad.benefit.pop.feedutility.PopUtilityLayoutHandler

class CustomPopUtilityLayoutHandler(val context: Context): PopUtilityLayoutHandler(context) {
    override fun onCreateView(parent: ViewGroup?): View {
        val inflater = LayoutInflater.from(context)
        return inflater.inflate(R.layout.your_pop_utility_view, parent, false)
    }
}

import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.sample.buzzvilsdksample.pop.CustomPopUtilityLayoutHandler

PopConfig.Builder(popFeedConfig)
    .popUtilityLayoutHandlerClass(CustomPopUtilityLayoutHandler::class.java)
    .build()

Utility icon specifications

Use the following image specifications for icons in the utility area.

Item	Specification
Image type	Raster or vector image
Size	24 × 24 dp at mdpi. 96 × 96 px, supporting up to xxxhdpi at 4× pixel resolution.
Color	Monochrome or full color

Add a custom page

Add a fully customized Pop BenefitHub page with a navigation bar and content area. Set a title in the navigation bar and a Fragment of your choice in the content area.

Add the following code when implementing the default Pop BenefitHub navigation bar or customizing the utility area.

import com.buzzvil.buzzad.benefit.pop.navigation.CustomInAppLandingInfo
import com.buzzvil.buzzad.benefit.pop.navigation.PopNavigator

PopNavigator().launchCustomFragment(
    context,
    CustomInAppLandingInfo(
        YourFragment(),
        R.string.your_title
    )
)

UI configuration

Learn how to customize the Pop button and placement UI. See the Pop design guide for detailed Pop BenefitHub specifications.

For further customization, implement your own placement following Standard Pop additional features.

Pop button color

Use GlobalTheme, which controls the primary UI color, to change the Pop button color. See Global theme.

Pop button icons

Set BuzzAdPopTheme in Application.onCreate to change the default, reward and close icons.

Icon type	Code	Description	Recommended size
Default icon	`iconResId`	The default Pop button icon.	56 × 56 dp at mdpi. 224 × 224 px, supporting up to xxxhdpi at 4× resolution.
Reward icon	`rewardReadyIconResId`	Shown when points are available to earn.	56 × 56 dp at mdpi. 224 × 224 px, supporting up to xxxhdpi at 4× resolution.
Close icon	`popFeedCloseIconResId`	Closes Pop BenefitHub.	56 × 56 dp at mdpi. 224 × 224 px, supporting up to xxxhdpi at 4× resolution.

The following example changes Pop icons.

import com.buzzvil.buzzad.benefit.pop.BuzzAdPop
import com.buzzvil.buzzad.benefit.pop.BuzzAdPopTheme

val buzzAdPopTheme = BuzzAdPopTheme.getDefault()
    // ...생략...
    .iconResId(R.drawable.your_pop_icon)
    .rewardReadyIconResId(R.drawable.your_pop_icon_reward_ready)
    .popFeedCloseIconResId(R.drawable.your_pop_icon_feed_close)
BuzzAdPop.getInstance().setTheme(buzzAdPopTheme)

Configure Pop button icon resources

Configure the icon resources as follows.

iconResId: Specify the default and close icons.


<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">

    <item android:drawable="@drawable/icon_pop_selected" android:state_selected="true" />

    <item android:drawable="@drawable/icon_pop"/>
</selector>

rewardReadyIconResId: Specify the icon shown when points are available to earn.


<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">

    <item android:drawable="@drawable/icon_pop_selected" android:state_selected="true" />

    <item android:drawable="@drawable/icon_pop_reward_ready"/>
</selector>

Pop foreground service notification

When Pop is enabled, its foreground service notification appears in the device notification panel. Customize its design using the SDK's default UI settings.

The diagram and table below show which notification elements you can customize.

Number	Component	Description
1	Small icon (`smallIconResId`)	Your app's icon. ❗️ Caution: Adaptive Icons are not recommended because they may not display correctly.
2	Color (`colorResId`)	Color applied to the app icon and name. ❗️ Caution: Avoid white, which matches the notification background.
3	Title (`titleResId`)	Text identifying the Pop foreground service notification.
4	Text (`textResId`)	Text explaining that tapping the notification opens Pop BenefitHub.

Configure the elements in PopNotificationConfig, then set popNotificationConfig on popFeedConfig to apply the notification design.

The following example customizes the Pop foreground service notification.

import com.buzzvil.buzzad.benefit.pop.PopNotificationConfig

val popNotificationConfig = PopNotificationConfig.Builder(applicationContext)
      .smallIconResId(R.drawable.your_small_icon) // 흰색 아이콘, Adaptive Icon 이 설정하지 않도록 주의 요망
      .titleResId(R.string.your_pop_notification_title)
      .textResId(R.string.your_pop_notification_text)
      .colorResId(R.color.your_pop_notification_color)
      .notificationId(5000) // 기본값
      .build()

import com.buzzvil.buzzad.benefit.pop.PopConfig
import com.buzzvil.buzzad.benefit.presentation.feed.FeedConfig

val popFeedConfig = FeedConfig.Builder("YOUR_POP_UNIT_ID").build()

val popConfig = PopConfig.Builder(popFeedConfig)
    // ...생략...
    .popNotificationConfig(popNotificationConfig)
    .build()

Navigation bar icon color

Change the left-hand navigation bar icon color in Pop BenefitHub. See Global theme.

Pop message area

When ads are available in Pop BenefitHub, PopAdMessageViewClass displays a message bubble (preview). The default class lets you configure the available points and remaining display time in seconds.

Follow these steps to change the Pop message area.

Override the following functions in PopAdMessageViewClass.

Implement PopAdMessageViewClass by extending PopAdMessageView.

Function	Description
`updateView`	Called every second when the message bubble updates. Receives the remaining seconds and available `reward` as arguments.
`getDurationInSeconds`	Return the Pop display duration in seconds. The recommended duration is 5 seconds.

See the following code example.

import android.content.Context
import android.view.LayoutInflater
import android.widget.TextView
import com.buzzvil.buzzad.benefit.pop.message.PopAdMessageView

class CustomPopAdMessageView: PopAdMessageView {
    private lateinit var textTitle: TextView
    private lateinit var textDescription: TextView

    constructor(context: Context): super(context) {
        val view = LayoutInflater.from(context).inflate(R.layout.your_pop_ad_message_view, this)
        this.textTitle = view.findViewById(R.id.textTitle)
        this.textDescription = view.findViewById(R.id.textDescription)
    }

    override fun updateView(reward: Int, remainSeconds: Int) {
        textTitle.text = "$reward 포인트 적립 가능합니다."
        textDescription.text = "$remainSeconds 초 후에 닫힙니다."
    }

    override fun getDurationInSeconds(): Int {
        return 5
    }

    override fun getMessage(): String {
        return textTitle.text.toString()
    }
}

Apply the following code to use Pop with your updated message area.

import com.buzzvil.buzzad.benefit.pop.PopConfig

PopConfig.Builder(applicationContext, "POP_UNIT_ID")
    .popAdMessageViewClass(CustomPopAdMessageView::class.java)

Standard Pop

Key features#

Integration#

Step 1. Prepare#

Step 2. Add Pop BuzzBenefit#

Step 3. Enable Pop#

Disable Pop#

Additional features#

Configure PopConfig#

Change the Pop button display duration#

Change the Pop button position#

Set Pop button horizontal spacing#

Implement a custom Pop foreground service notification#

Implement a custom navigation bar#

Use the SDK's default UI#

Use your own custom view#

Customize the Pop utility area#

Utility icon specifications#

Add a custom page#

UI configuration#

Pop button color#

Pop button icons#

Configure Pop button icon resources#

Pop foreground service notification#

Navigation bar icon color#

Pop message area#

Key features

Integration

Step 1. Prepare

Step 2. Add Pop BuzzBenefit

Step 3. Enable Pop

Disable Pop

Additional features

Configure `PopConfig`

Change the Pop button display duration

Change the Pop button position

Set Pop button horizontal spacing

Implement a custom Pop foreground service notification

Implement a custom navigation bar

Use the SDK's default UI

Use your own custom view

Customize the Pop utility area

Utility icon specifications

Add a custom page

UI configuration

Pop button color

Pop button icons

Configure Pop button icon resources

Pop foreground service notification

Navigation bar icon color

Pop message area
